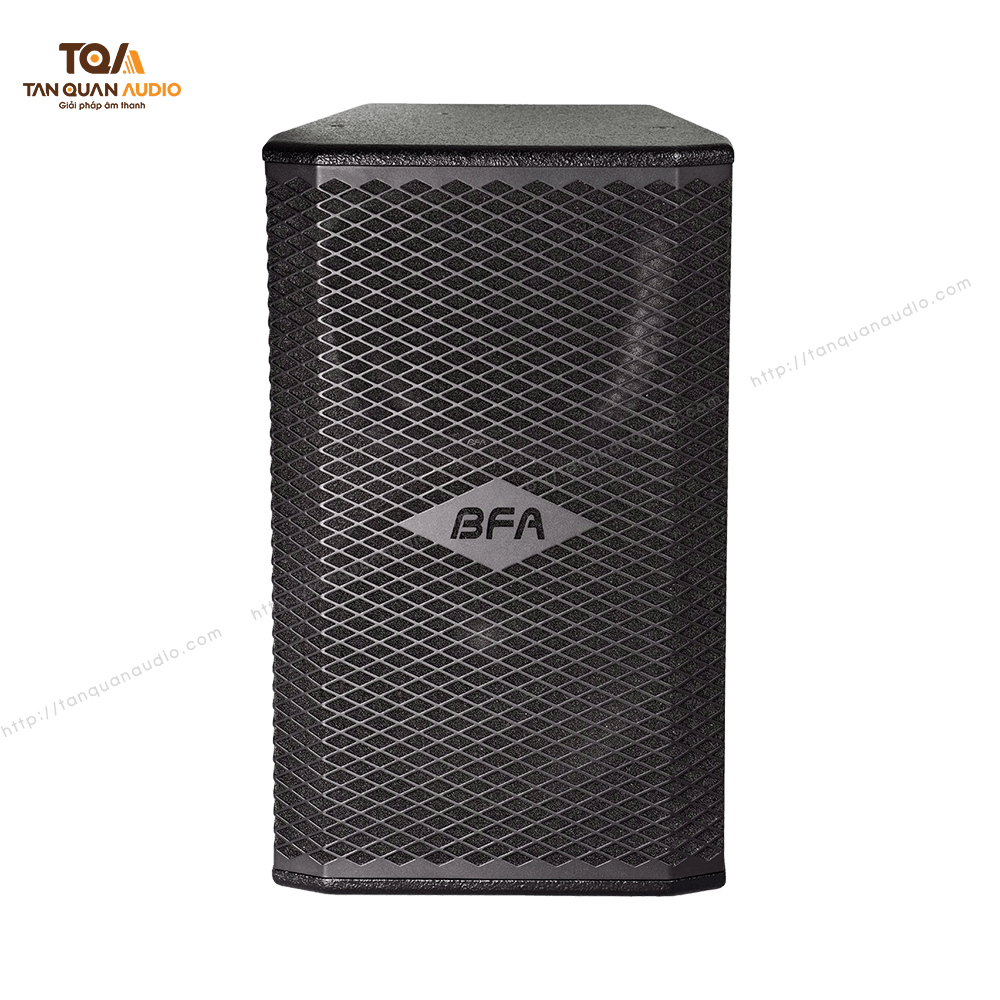

The BFAudioPro RC-10pro features a premium and compact design. It utilizes a 254 mm (10-inch) moisture-protected woofer with a 65mm voice coil. The compression driver supports a maximum peak power of 1200 watts. The 70° x 100° coverage pattern provides smooth and even sound distribution, whether used in vertical or horizontal orientation. A high-order passive crossover network minimizes frequency band overlap.
RC-10 ACTIVE VERSION – INTEGRATED POWER MODULE (OPTIONAL)
FEATURES
● High-efficiency 10-inch woofer with 65mm voice coil
● 34mm polymer diaphragm compression driver
● Enclosure crafted from 15mm plywood with a robust and durable finish
● 70° x 100° coverage pattern for smooth and even on-and-off-axis response
● Robust grille design backed by acoustically transparent fabric
● Precision-engineered crossover for optimal driver integration
● Professional brushed aluminum BFA logo
● Black textured finish protecting the speaker against harsh weather conditions
APPLICATIONS
● Sound reinforcement for Karaoke and conferences
● Bars, nightclubs, or usage as stage monitors
● High-performance satellite speaker for use with subwoofers
| System Type | 10inch, 2way, bassreflex |
| Frequency Range (10 dB) | 55Hz – 20kHz |
| Frequency Response (± 3 dB) | 85Hz – 20kHz |
| System Sensitivity (1W @ 1m) | 97dB |
| Nominal Impedance | 8Ω |
| Maximum SPL | 124dB (129dB Peak) |
| Power Rating (Continuous / Rated / Peak) | 300W / 600W / 1200W |
| Coverage Pattern (H x V) | 70° x 100° |
| Dimensions (W x D x H) | 34 x 38 x 61.5 cm |
| Net Weight | 18.3kg |
| LF Driver | 1 x 10inch (25cm), 65mm voice coil, ferrite magnet |
| HF Driver | 1 x BFA300 (Compression driver), 34mm voice coil |
| Input Connectors | 2 x Neutrik® Speakon® NL4MP |
| Enclosure Material | 15mm waterproof plywood, abrasionresistant textured finish |
| Color | Professional black |
Warranty: 5 years
